2012 Entegra Anthem - Road Test and Review

Raising The Proverbial Bar on the Class-A Motorhome
Article Date: September, 2011


/articlepics/9_2012_anthem_image-1.jpg

Better Storage

The large pass through basement storage is accessed by side-hinged doors and a generous 20-inch height clearance was found between the bottom of the frame rails and the basement floor. Details like the slide-out cargo tray provides ease of access to cargo. Power patio and entrance door awnings are standard equipment. One notable feature was the lack of any seams or joints where the front cap was attached to the side walls. The front and rear caps were molded to the body to provide an attractive one-piece look and smoother airflow, resulting in less wind noise. LED tail lights, a vertical lift engine access cover, and recessed rear camera finished off the rear cap.

Notable Features

The Anthem features flush mount windows. There are no frames to create additional wind noise or sliding windows to leak or rattle. The bottom awning window portions can be cranked out to allow airflow even in a light rain. All slide-outs as well as the entry door are flush mounted. We found the entry door very easy to open while still remaining tightly sealed when driving. This is due to a pneumatic door latch system that pulls the door tight whenever the parking brake is released.

Plus, beneath the wide power awning is a built-in entertainment center with its own 32-inch LCD TV plus a DVD-based entertainment system and speakers. An optional freezer on a slide-out tray is optional.

/articlepics/9_2012_anthem_image-18.jpg

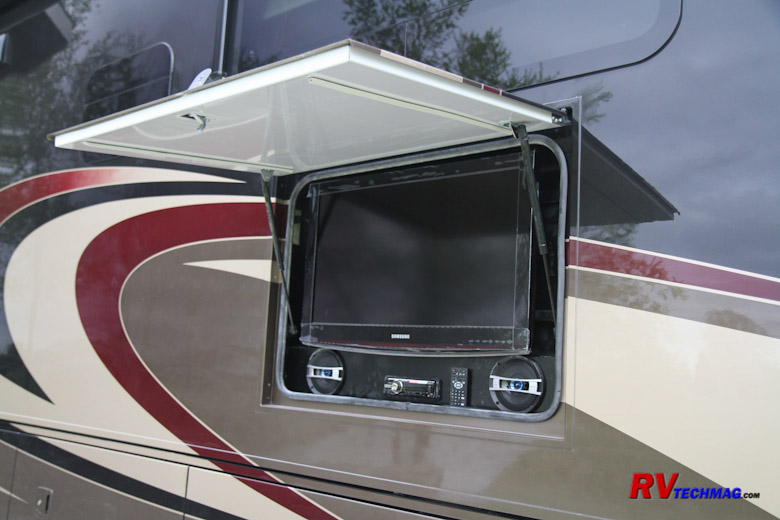

An outside entertainment center provides TV Viewing in the patio area.

/articlepics/9_2012_anthem_image-20.jpg

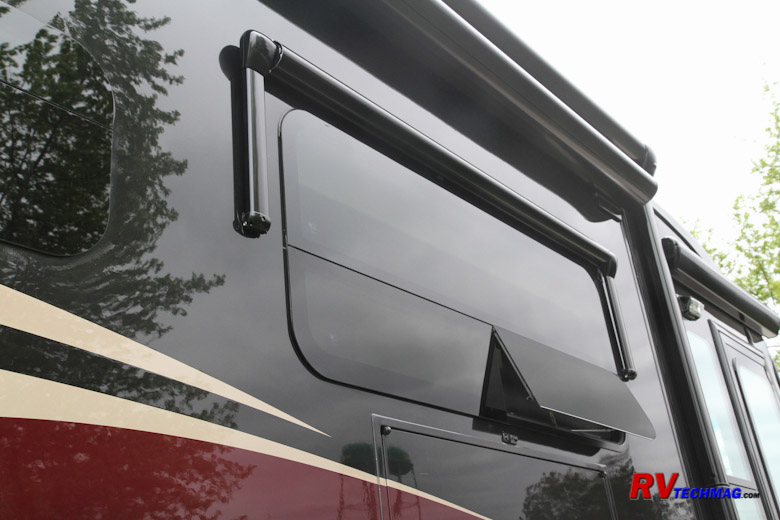

Flush mounted frameless windows provide a smooth appearance and minimize wind noise when driving.

The Utilities

The Anthem is equipped with a 100-gallon fresh water tank, a 60-gallon gray water tank and a 60-gallon black water tank. For 2012, the Anthem is equipped with a full house water filtration system. A power hose reel is provided to connect to the campground water spigot. The 50-amp electrical service is fed by a power cord reel, or a 12,500-watt Onan Quiet Diesel generator, which is located on a slide-out tray in the front cap.

An Onan EC-30 Automatic Generator Start system can be energized to autostart the generator whenever shore power is not available and battery voltage is below a certain threshold, or the thermostat is calling for air conditioning. A bank of eight AGM batteries supplies 12-volt electrical power. Dual Magnum 2800-watt Pure Sine Wave inverters provide AC power for many accessories whenever shore power is not available or the generator is not running.

An Aqua Hot heating system performs dual duty. It utilizes a diesel burner or 120-volt power to provide hydronic heat to heat exchangers in two interior zones, as well as, a basement zone to provide heat for the holding tanks and plumbing. Another zone controls the in-floor heating loop to eliminate cold floors on the polished ceramic tile flooring. Its second function is to provide unlimited domestic hot water so that your shower never runs cold.

/articlepics/9_2012_anthem_image-21.jpg

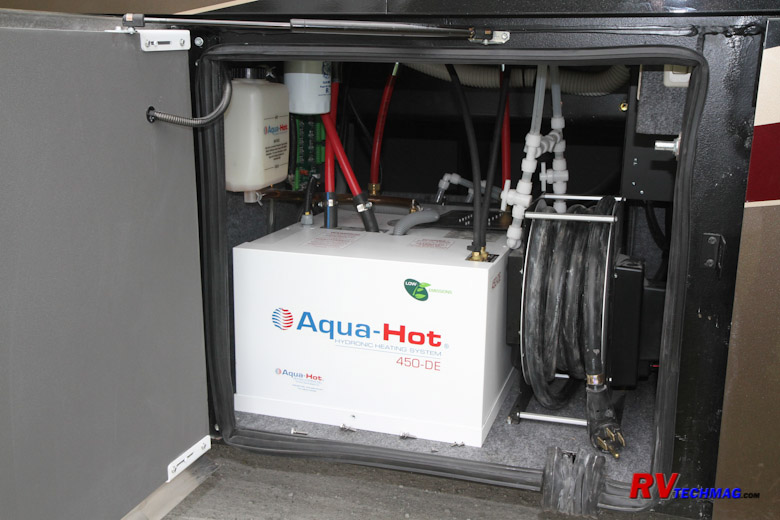

The Aqua Hot hydronic heating system also provides unlimited domestic hot water.

All the AC needs were met by three 15,000-BTU rooftop units with heat pumps. The units are ducted and feed a series of louvers in the ceiling that tap into the ductwork plenum. The AC return air in the main living area was fed through a mirrored and hardwood trimmed intake duct to provide quiet airflow when running.

Lighting throughout the coach was controlled by multiplex lighting controllers. You can create specific scenes to your own taste and save them to allow instant recall from various locations within the coach.
